3280-10F HIOKI 1000A Japan AC CLAMP METER
৳ 5,600.00
Hioki clamp meters are best-in-class measuring devices incorporating Hioki’ s expertise in current sensing technology. The 3280-10F is an average rectifying 1000A AC clamp meter that features a broad operating temperature range of -25°C to 65°C, thin and compact clamp core and optional flexible current sensor that you can attach to let you get into the tightest spots.
CAT IV 300 V (Current)
CAT III 600 V (Current)
CAT III 300 V (Voltage)
Key Features
Measure the fundamental waveform component using the average rectified method
Expanded -25°C to 65°C operating temperature range
Connect the CT6280 flexible sensor to measure up to 4199 A in thick or paired wires
Drop proof design withstands drop from a height of 1 meter
... people are viewing this right now
Basic specifications
Accuracy guaranteed: 1 year
Swipe Left
AC Current range 41.99 to 1000 A, 3 ranges (50 Hz to 60 Hz, Average rectified),
Basic accuracy: ±1.5 % rdg. ±5 dgt.
DC Voltage range 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt.
AC Voltage range 4.199 V to 600 V, 4 ranges
(45 to 500 Hz, Average rectified),
Basic accuracy: ±1.8 % rdg. ±7 dgt.
Crest factor N/A
Resistance range 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt.
Other functions Continuity: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter
Display LCD, max. 4199 dgt., Display refresh rate: 400 ms
Environmental protection IP40 dustproof and waterproof (while in storage)
Power supply Coin type lithium battery (CR2032) ×1, Continuous use 120 hours
Core jaw dia. φ 33 mm (1.30 in)
Dimensions and mass 57 mm (2.24 in) W × 175 mm (6.89 in) H × 16 mm (0.63 in) D, 100 g (3.5 oz)
Included accessories CARRYING CASE 9398 ×1, TEST LEAD L9208 ×1, Coin type lithium battery (CR2032) ×1, Instruction manual ×1
Related Products
Waterproof Industrial Plug 5P 63A 380V IP67 3P+E+N Male Female 5*63A
৳ 1,500.00
Add to cart
| Plug type : | 3P+E+N Pin |
| Product Name : | Industrial Plug |
| Place of Origin : | China |
| Brand Name : | Farnik & Realness |
| Model Number : | 035 |
| Type : | Plug |
| Grounding : | Grounding |
| Rated Voltage : | 380V-415V AC |
| Rated Curren : | 63A |
| Application : | Industrial & Project |
| Material : | pp |
| Usage : | Electric Industry |
| Certificate : | CE Certification |
| Color : | Red |
| Certification : | CE |
| Warranty : | 12 Months |
| waterproof level : | IP67 |

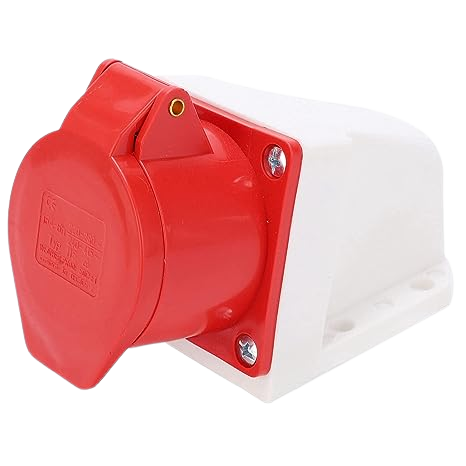

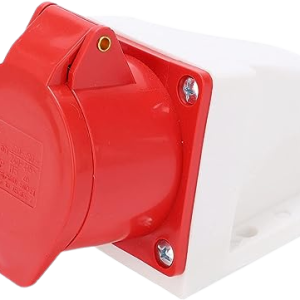

Waterproof Industrial Wall Socket 5P 16A 380V IP44 3P+E+N Male Female 5*16A
৳ 280.00
Add to cart
| Plug type : | 3P+E+N Pin |
| Product Name : | Industrial Socket |
| Place of Origin : | China |
| Brand Name : | Farnik & Realness |
| Model Number : | 115 |
| Type : | Socket |
| Grounding : | Grounding |
| Rated Voltage : | 380V-415V AC |
| Rated Curren : | 16A |
| Application : | Industrial & Project |
| Material : | pp |
| Usage : | Electric Industry |
| Certificate : | CE Certification |
| Color : | Red |
| Certification : | CE |
| Warranty : | 12 Months |
| waterproof level : | IP44 |

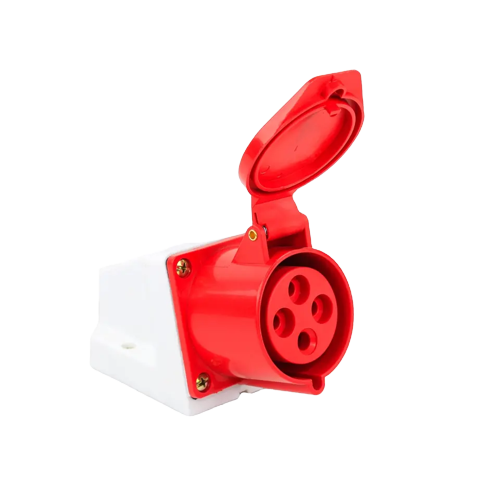

Waterproof Industrial Wall Socket 4P 32A 380V IP44 3P+E Male Female 4*32A
৳ 410.00
Add to cart
| Plug type : | 3P+E Pin |
| Product Name : | Industrial Socket |
| Place of Origin : | China |
| Brand Name : | Farnik & Realness |
| Model Number : | 124 |
| Type : | Socket |
| Grounding : | Non-Grounding |
| Rated Voltage : | 380V-415V AC |
| Rated Curren : | 32A |
| Application : | Industrial & Project |
| Material : | pp |
| Usage : | Electric Industry |
| Certificate : | CE Certification |
| Color : | Red |
| Certification : | CE |
| Warranty : | 12 Months |
| waterproof level : | IP44 |

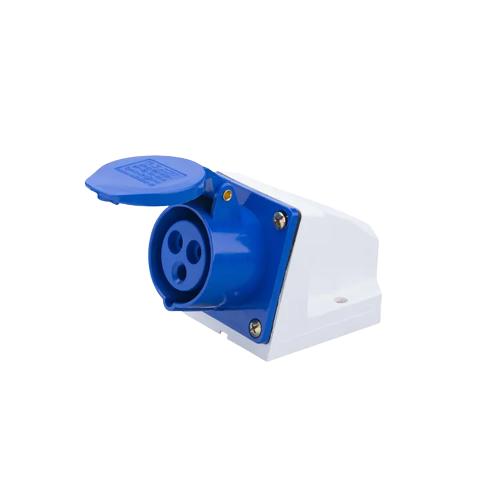

Waterproof Industrial Wall Type Socket 3P 16A 240V IP44 2P+E Male Female 3*16A
৳ 240.00
Add to cart
Essential details
Plug type : 2+E Pin Product Name : Industrial Plug
Place of Origin : China Brand Name : Farnik & Realness
Model Number : 313 Type : Plug
Grounding : Non-Grounding Rated Voltage : 220V-250VAC
Rated Curren : 16A Application : Industrial & Project
Material : PP Usage : Electric Industry
Certificate : CE Certification Color : Blue
Certification : CE Warranty : 12 Months

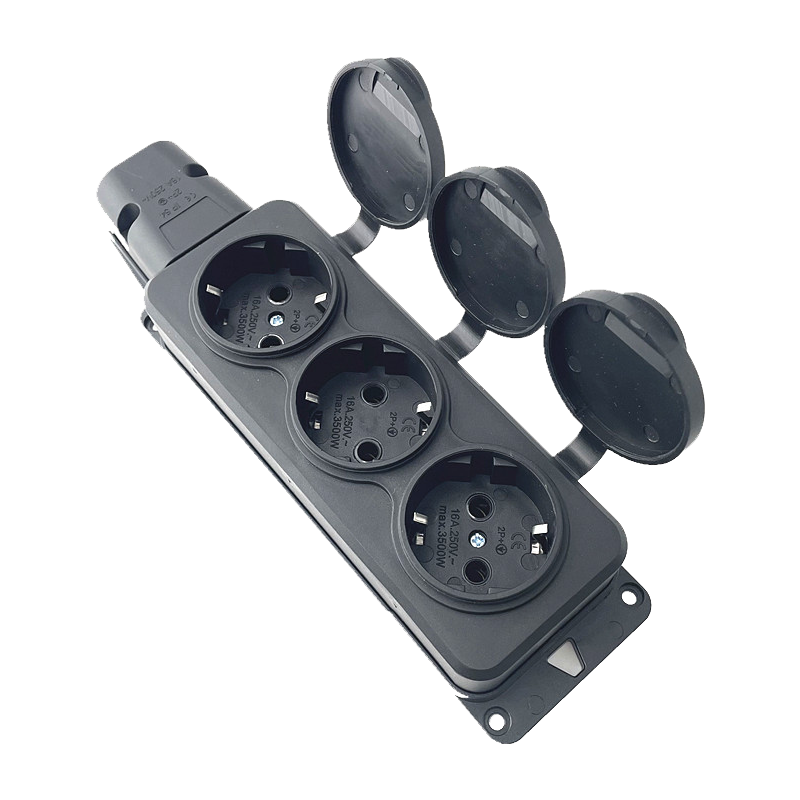

YK403P Waterproof 3 Way European style Industrial Rubber extension socket
৳ 600.00
Add to cart
Specifications
| Model NO: |
YK4039
|
| Type: |
Without Switch
|
| Origin | China |
| Grounding: | Standard Grounding |
| Rated Current: | 16A |
| Rated Voltage: | 250V AC |
| Type: | Extension Socket |
| Color: | Black |
| Customized: | Non-Customized |
| Application: | Residential / General-Purpose |
| IP Rating: | IP44 |
| Material: | PPE rubber shell, PC or Nylon core, PC bottom, copper accessories |
| HS Code: | 8536690000 |
| Trademark: | SCIC |
Waterproof Industrial Plug 3P 32A 240V IP44 2P+E Male Female 3*32A
৳ 230.00
Add to cart
Essential details
Plug type : 2+E Pin Product Name : Industrial Plug
Place of Origin : China Brand Name : Farnik & Realness
Model Number : 023 Type : Plug
Grounding : Non-Grounding Rated Voltage : 220V-240VAC
Rated Curren : 32A Application : Industrial & Project
Material : PP Usage : Electric Industry
Certificate : CE Certification Color : Blue
Certification : CE Warranty : 12 Months

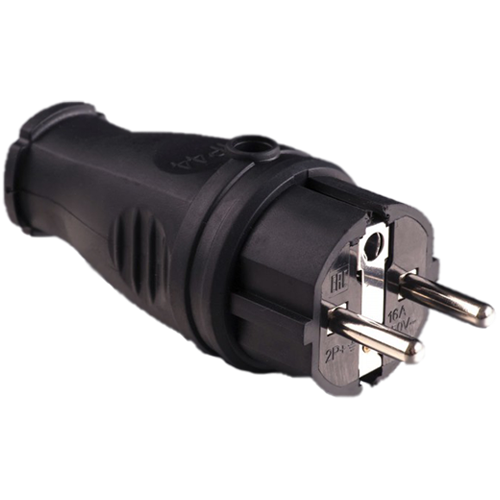

YK405P-F Waterproof 2 Pin Electrical Rubber Plug with Grounding
৳ 210.00
Add to cart
Specifications
| Type: | Rubber plug |
| Item No: | YK405P-F |
| Material: | Rubber shell, PC core, brass accessories |
| Rated Current: | 16A |
| Rated Voltage: | 250V |
| Application: | Industrial |
| Grounding: | Non-Grounding |
| Brand Name: | SCIC |
| MOQ: | 1000pcs |

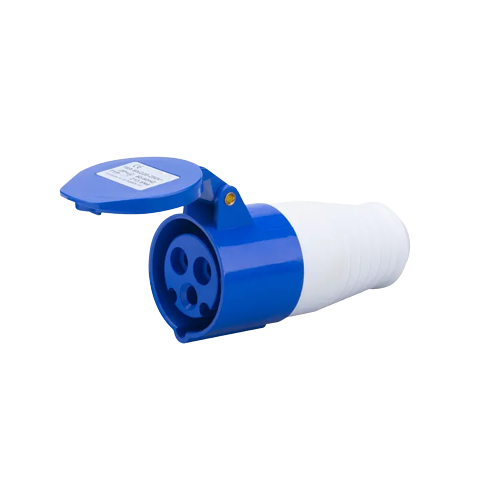

Waterproof Industrial Mobile Type Socket 3P 16A 240V IP44 2P+E Male Female 3*16A
৳ 190.00
Add to cart
Essential details
Plug type : 2+E Pin Product Name : Industrial Plug
Place of Origin : China Brand Name : Farnik & Realness
Model Number : 213 Type : Socket
Grounding : Non-Grounding Rated Voltage : 220V-240VAC
Rated Curren : 16A Application : Industrial & Project
Material : PP Usage : Electric Industry
Certificate : CE Certification Color : Blue
Certification : CE Warranty : 12 Months

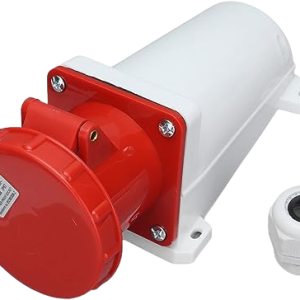

Waterproof Industrial Wall Socket 4P 63A 380V IP67 3P+E Male Female 4*63A
৳ 1,700.00
Add to cart
| Plug type : | 3P+E Pin |
| Product Name : | Industrial Socket |
| Place of Origin : | China |
| Brand Name : | Farnik & Realness |
| Model Number : | 134 |
| Type : | Socket |
| Grounding : | Non-Grounding |
| Rated Voltage : | 380V-415V AC |
| Rated Curren : | 63A |
| Application : | Industrial & Project |
| Material : | pp |
| Usage : | Electric Industry |
| Certificate : | CE Certification |
| Color : | Red |
| Certification : | CE |
| Warranty : | 12 Months |
| waterproof level : | IP67 |
Waterproof Industrial Plug 4P 63A 380V IP67 3P+E Male Female 4*63A
৳ 1,400.00
Add to cart
| Plug type : | 3P+E Pin |
| Product Name : | Industrial Plug |
| Place of Origin : | China |
| Brand Name : | Farnik & Realness |
| Model Number : | 034 |
| Type : | Plug |
| Grounding : | Non-Grounding |
| Rated Voltage : | 380V-415V AC |
| Rated Curren : | 63A |
| Application : | Industrial & Project |
| Material : | pp |
| Usage : | Electric Industry |
| Certificate : | CE Certification |
| Color : | Red |
| Certification : | CE |
| Warranty : | 12 Months |
| waterproof level : | IP67 |
Reviews
There are no reviews yet.
