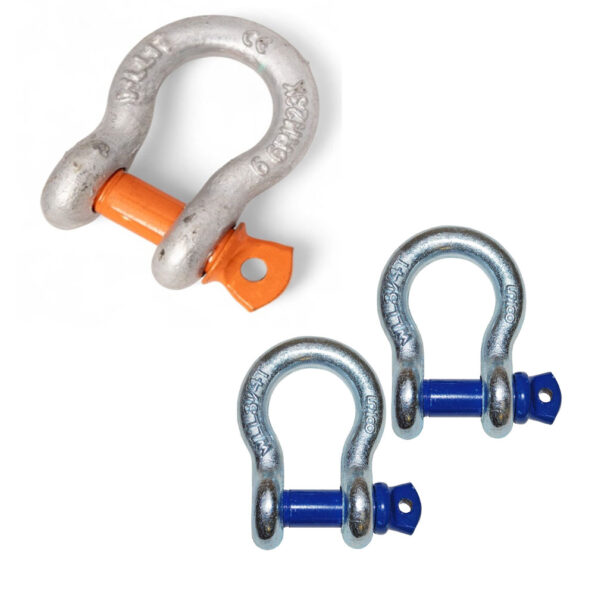

D Shackle (Bow Shackle)

Name: D Shackle (Bow Shackle)
SKU: GAL000077-1
Price: 16.00 BDT
Availability: InStock

৳ 16.00

... people are viewing this right now

Guaranteed Safe Checkout

Description

D Shackle

A D Shackle (Dee Shackle) is a forged steel lifting and rigging component used to connect wire ropes, chain slings, webbing slings, hooks and other lifting accessories. Its narrow D-shaped design is especially suitable for straight-line lifting applications. ISO 2415 defines Dee shackles and specifies preferred dimensions according to Working Load Limit (WLL).

D Shackle Size & Specification

Size / WLL	Body Dia. d	Pin Dia. D	Inside Width W	Inside Length S
0.5 Ton	6.5 mm	8 mm	12 mm	20 mm
0.75 Ton	8 mm	9.5 mm	13.5 mm	25 mm
1 Ton	10 mm	11 mm	16.5 mm	27 mm
1.5 Ton	11.2 mm	12.2 mm	19 mm	33 mm
2 Ton	13.5 mm	16 mm	21.5 mm	38 mm
3.25 Ton	16.5 mm	19 mm	27 mm	47 mm
4.75 Ton	20 mm	22 mm	31.5 mm	52 mm
6.5 Ton	23 mm	25 mm	36.5 mm	65 mm
8.5 Ton	25.5 mm	28 mm	43 mm	74 mm
9.5 Ton	29 mm	32 mm	46.5 mm	83 mm
12 Ton	33 mm	35 mm	51.5 mm	87 mm
13.5 Ton	36.5 mm	38 mm	57 mm	104 mm
17 Ton	39.5 mm	42 mm	60 mm	115 mm
25 Ton	46 mm	51 mm	74 mm	139 mm

These dimensions correspond to the commonly referenced Grade 6 forged-steel Dee shackle dimensions; actual product dimensions can vary by manufacturer and grade.

Key Features

Forged steel construction
High-strength lifting and rigging application
D-shaped compact design
Available with screw pin or bolt-type pin
Suitable for chain, wire rope and webbing sling connections
Multiple WLL/capacity options
Suitable for industrial, construction, marine and material-handling applications
Clearly marked WLL should be checked before lifting

Applications

D Shackles are commonly used for lifting machinery, crane rigging, chain slings, wire rope assemblies, construction work, cargo handling, industrial maintenance and general material lifting.
