Film Coating Thickness Gauge Meter
৳ 12,000.00
Coating Thickness Gauge Film/Coating thickness gauge is used to measure the coating wall of metals and other material.
It us Category (AR)Film Coating Thickness, Thickness Gauge
... people are viewing this right now

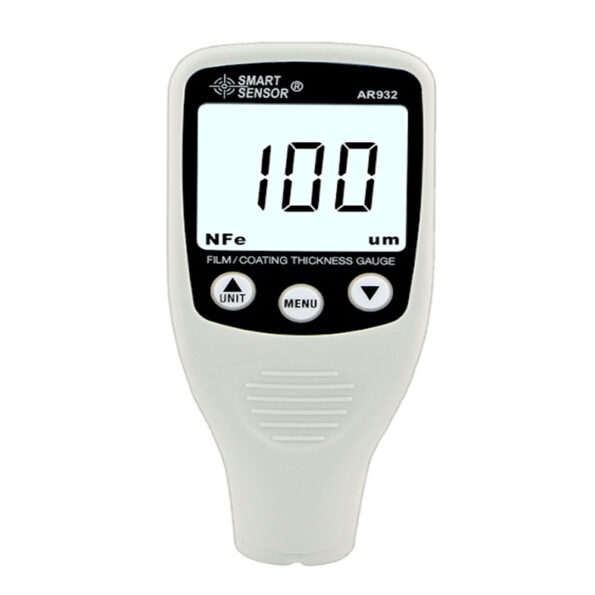

Film Coating Thickness Gauge Meter
The Film Coating Thickness Gauge Meter is a professional digital measuring instrument designed to accurately measure the thickness of paint, powder coating, varnish, lacquer, and other non-metallic coatings applied to metal surfaces. It is suitable for quality control, industrial inspection, automotive applications, manufacturing, fabrication, and maintenance work.
Key Features
- Digital coating thickness measurement
- Measures paint and film coating thickness quickly and accurately
- Suitable for ferrous and non-ferrous metal substrates, depending on model
- Easy-to-read LCD display
- Compact, lightweight, and portable design
- Automatic measurement and data display
- Zero calibration and multi-point calibration functions
- Ideal for checking coating uniformity and surface quality
- Suitable for laboratory, workshop, construction, and industrial use
Applications
- Automotive paint thickness inspection
- Metal fabrication and manufacturing
- Powder coating inspection
- Paint and varnish thickness measurement
- Industrial quality control
- Steel structure inspection
- Machinery and equipment maintenance
- Corrosion protection coating inspection
Typical Specifications
- Measurement Type: Coating/FIlm Thickness
- Measurement Principle: Magnetic Induction / Eddy Current, depending on model
- Display: Digital LCD
- Units: µm / mil
- Calibration: Zero and multi-point calibration
- Probe: Integrated or external probe, depending on model
- Application: Ferrous and non-ferrous substrates
- Power: Battery operated
- Use: Professional and industrial inspection
Note: Exact measuring range, accuracy, resolution, probe type, and substrate compatibility vary by model. Please confirm the model before purchase.
SPECIFICATIONS
|
Measuring range |
0~1800μm |
|
Measuring Principle |
Magnetic Induction & Eddy current |
|
Accuracy |
±(1.8%um±2um)(0-500um) ; ±(2.2%um±2um) (500-1500um) |
|
Resolution |
0.1μm / 1μm |
|
Backlight Display |
√ |
|
Battery Indication |
√ |
|
Zero / Two Poin / Basic correction |
√ |
|
Alarm Buzzer |
√ |
|
Single / Continuous / Standard Deviation Measurement |
√ |
|
Data Storage & Recall |
√ |
|
Data Storage |
20 groups |
|
Max & Min Measuring |
√ |
|
AVG & DFR Measuring |
√ |
|
Metric / Imperial Switchable |
√ |
|
Data Analysis |
√ |
|
Operating Condition |
0℃~50℃(without strong magnetic) |
PACKING INFORMATION
|
Power |
2*1.5V AAA battery |
|
Product Net Weight |
75g |
|
Product Size |
119*50*30mm |
|
Packing |
Gift Box |
|
Standard Quantity Per Carton |
40 |
|
Standard Carton Size |
52.5*40*49cm |
|
Standard Carton Gross Weight |
20KG |
