High Voltage Insulation Tester AR3125 Smart Sensor
৳ 23,500.00
... people are viewing this right now

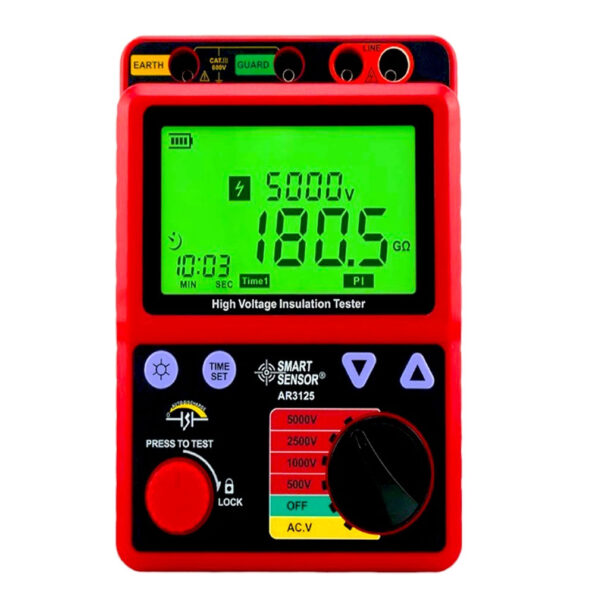

High Voltage Insulation Tester AR3125 Smart Sensor
The SMART SENSOR AR3125 High Voltage Insulation Tester is a professional digital insulation resistance meter designed for testing electrical insulation in motors, generators, transformers, cables, wiring and electrical equipment. It provides selectable test voltages up to 5000V and insulation resistance measurement up to 1000GΩ.
Key Features
- Brand: SMART SENSOR
- Model: AR3125
- Test Voltage: 500V / 1000V / 2500V / 5000V
- Insulation Resistance Range: 0.0MΩ–1000GΩ
- AC/DC Voltage Measurement: 30–600V
- Voltage Resolution: 1V
- Accuracy: ±5%rdg ±3dgt for insulation resistance
- Polarization Index (PI) Test: Yes
- High-Voltage Warning: Symbol + buzzer alarm
- Automatic Discharge: Yes
- LCD Backlight: Yes
- Low-Battery Indicator: Yes
- Auto Power-Off: Approximately 10 minutes
- External Power: DC 12V / 1A adapter
- Power: 8 × 1.5V LR14 batteries
- Operating Temperature: 0°C–40°C
- Size: Approximately 153 × 213 × 95 mm
- Weight: Approximately 1.03 kg
Applications
Suitable for:
- Electrical cable insulation testing
- Motor and generator maintenance
- Transformer insulation testing
- Power distribution equipment
- Industrial electrical systems
- Preventive electrical maintenance
- Testing control, signal and communication cables
SEO Tags:
AR3125, Smart Sensor AR3125, High Voltage Insulation Tester, Insulation Resistance Tester, 5000V Insulation Tester, Digital Megohmmeter, High Voltage Megger, Insulation Resistance Meter, Electrical Insulation Tester, 5KV Insulation Tester, Motor Insulation Tester, Transformer Insulation Tester, Cable Insulation Tester, PI Tester, Smart Sensor Tester
SPECIFICATIONS
|
Rated voltage |
500V / 1000V / 2500V / 5000V |
|
Open Circuit Voltage |
DC 500V +30%, -0% ~ DC 5000V +20%, -0% |
|
Insulation Resistance Testing Range |
0.0MΩ~1000GΩ |
|
Short Circuit Current |
1.3 mA Approx |
|
Insulation Resistance Accuracy |
0~99.9GΩ : ±5% rdg ±3% rdg
above 100GΩ : ±20%
|
|
Voltage Testing Range |
DC : ±30 ~ ±600V ; AC : 30 ~ 600V (50/60Hz) |
|
Voltage Resolution |
1V |
|
Accuracy |
±2%rdg ±3rdg |
|
Sampling Rate |
0.5 ~ 10 times / sec |
|
Operation Condition |
0°C ~ 40°C, ≤ 85% RH |
|
Storage Condition |
-20°C ~ 60°C, ≤90% RH |
|
Over Load Protection |
√ |
|
Auto Discharge |
√ |
|
Battery Indication |
√ |
|
Alarm |
High Voltage Warning Symbol & Buzzer Alarm |
|
External power supply |
DC adapter 12V / 1A |
PACKING INFORMATION
|
Power |
8*1.5V LR14 Battery |
|
Product Net Weight |
1027g |
|
Product Size |
153*213*95mm |
|
Packing |
Gift box |
|
Standard Quantity Per Carton |
6 |
|
Standard Carton Size |
45*32*55cm |
|
Standard Carton Gross Weight |
18.5kg |
