Digital RF Wattmeters – Precision RF Power Measurement for Modern Communication Systems

Digital RF Wattmeters are advanced RF power measurement instruments designed to accurately measure radio-frequency power in modern communication, broadcasting, industrial, laboratory, and wireless systems. Unlike traditional analog wattmeters, modern digital RF wattmeters can provide clear numerical readings and support both CW and digitally modulated RF signals.

For professional RF testing, a digital wattmeter can measure important parameters such as Forward Power, Reflected Power, VSWR, and Return Loss, helping technicians quickly identify transmission-line, antenna, transmitter, and RF-system problems.

What Is a Digital RF Wattmeter?

A Digital RF Wattmeter is a precision test instrument used to measure RF power traveling through a transmission line. It is commonly used by RF engineers, communication technicians, broadcasters, telecom professionals, and maintenance teams.

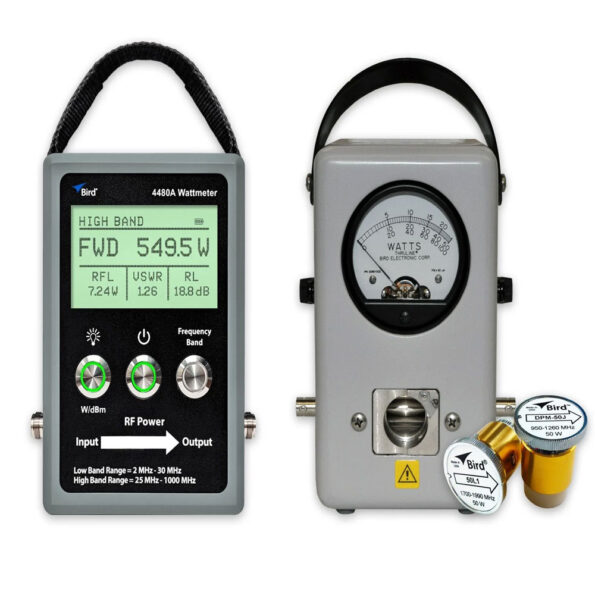

Modern models such as the Bird 4480A use an element-free design and provide true-average power measurements for CW and digitally modulated signals. It supports RF measurements from 2 MHz to 1 GHz and power levels up to 10 kW, depending on frequency range.

Key Features

• Digital LCD measurement display
• True-average RF power measurement
• Forward and reflected power measurement
• VSWR measurement
• Return Loss measurement
• Supports CW and digitally modulated signals
• Element-free operation on compatible models
• Wide frequency coverage
• High-power measurement capability
• Portable design for field testing
• Built-in data logging
• USB remote interface on compatible models
• Rechargeable battery operation
• Suitable for professional RF troubleshooting

Digital RF Wattmeter Specification – Bird 4480A

The 4480A supports modulation formats including CW, FM, AM, QAM, QPSK, FSK, P25, CDMA, TDMA, FDMA and DMR, making it suitable for many modern RF communication applications.

Forward Power and Reflected Power

One of the most important functions of an RF wattmeter is measuring forward and reflected power.

Forward power indicates the RF energy traveling toward the antenna or load. Reflected power indicates energy returning toward the transmitter because of impedance mismatch or other transmission-line problems.

Monitoring both values helps technicians evaluate RF system performance and identify potential antenna or cable issues.

VSWR and Return Loss Measurement

A professional digital RF wattmeter can calculate and display VSWR (Voltage Standing Wave Ratio) and Return Loss.

High VSWR may indicate an antenna mismatch, damaged cable, poor connector, or other RF transmission problem. Return Loss provides another way to evaluate how effectively RF energy is being transferred to the load.

The Bird 4480A automatically displays these measurements, reducing the need for manual calculations.

Why Choose a Digital RF Wattmeter?

Digital RF wattmeters offer several advantages for modern RF systems:

1. Accurate Digital Readings

The digital display provides clear numerical measurements and reduces errors associated with reading an analog scale.

2. Digital Signal Compatibility

Modern communication systems frequently use digitally modulated signals. A suitable digital RF wattmeter can measure true-average power on these signals more reliably than conventional meters designed primarily for constant-amplitude signals.

3. Multiple Measurements

A single instrument can provide forward power, reflected power, VSWR and return-loss information.

4. Element-Free Operation

Compatible element-free designs eliminate the need to select and install different plug-in elements for different measurements.

5. Portable RF Testing

Portable digital wattmeters are useful for field engineers and technicians working at communication sites, transmitter stations and industrial facilities.

Applications of Digital RF Wattmeters

Digital RF Wattmeters are widely useful in:

• Telecommunications
• Two-way radio systems
• Land Mobile Radio (LMR)
• Public safety communication
• RF transmitter testing
• Broadcasting
• Wireless communication
• Cellular infrastructure
• Antenna testing
• RF laboratories
• Industrial RF systems
• Military communication
• Aerospace and defense
• Research and development
• Field service and maintenance

Bird specifically lists telecommunications, broadcasting, military communications, and aerospace/defense among applications for the 4480A. (Bird)

Digital RF Wattmeter vs Analog RF Wattmeter

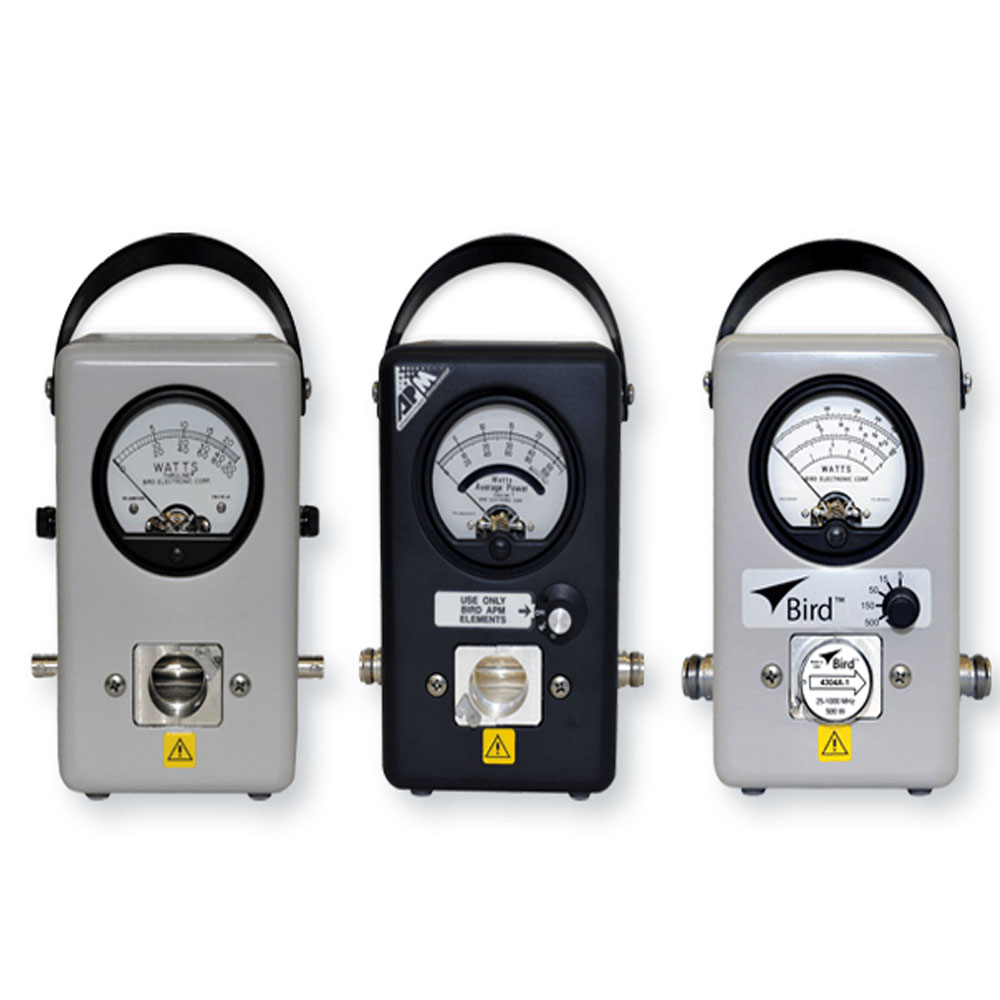

Traditional analog RF wattmeters remain useful for many CW and FM applications, but digital RF wattmeters provide additional capabilities for modern digitally modulated communication systems.

A digital instrument can provide direct numerical readings and automatically calculate parameters such as VSWR and return loss. For technicians working across multiple RF bands and modulation formats, an element-free digital design can also simplify measurement setup.

Professional RF Measurement Solution

For reliable RF system maintenance, choosing the correct wattmeter is essential. The measurement frequency, power level, impedance, modulation type, connector configuration and required accuracy should always be checked before selecting an RF wattmeter.

Digital RF Wattmeters provide a powerful solution for engineers and technicians who require accurate, repeatable and easy-to-read RF power measurements in modern communication environments.

For professional RF testing and maintenance, a properly selected digital wattmeter can help improve troubleshooting efficiency, verify transmitter performance, monitor reflected power and maintain overall RF system reliability.
