Sika Grout 214 IN in Bangladesh

HIGH PRECISION, NON-SHRINK, EXPANDING POURING GROUTDusk Technology: SikaGrout®-214 IN is a cement based 1-component, ready to mix, non-shrink, ready to use, pourable and flowable, two stage expanding engineering grout in dry powder form. It is widely used for precision grout ing in engineering objects subjected to static and dynamic loads.

USES:

•  To grout bearings, machine foundations, columns joints in precast construction etc.
• To grout anchors in concrete
• To grout cavities, gaps and voids in concrete

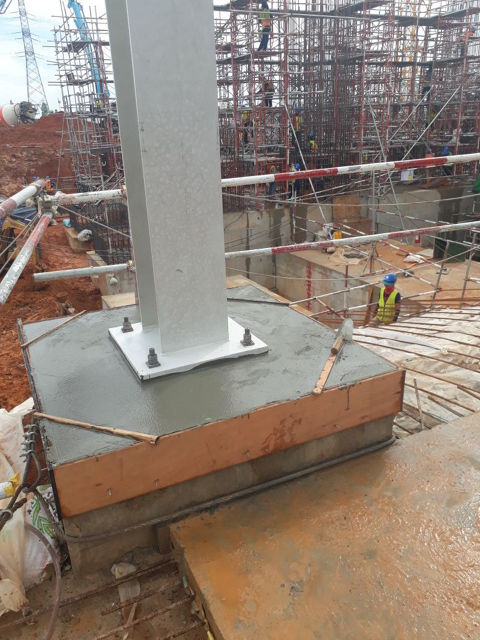

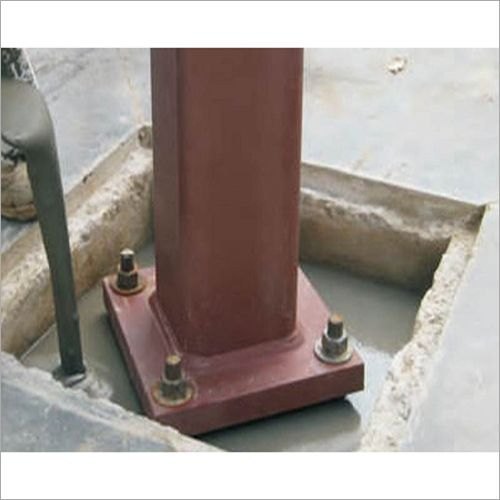

• To grout base plate of turbine, compressor, boilers, pumps and heavy machinery
• Sealing around penetrations
• Post fixings

CHARACTERISTICS / ADVANTAGES

• Dual Shrinkage compensated
• Suitable for temperature of above 0°C to 200°C
• Adjustable consistency
• Rapid strength development
• Excellent bond to Concrete
• No Segregation or bleeding
• High final strengths
• Impact and vibration resistant
• Non-corrosive to anchor bolts, base plate/saddle/frame, sliding plate
• Frost, oil and fire resistant
• Suitable to use under restraints and grout thickness required
• Maximum Flow distance is compatible to the dimensions of base plate/saddle/frame
• Resistant to the chemicals, gases etc. being handled in equipment
• Chloride free

PRODUCT INFORMATION

• Sika Grout 214 IN Composition Cement, special additives, and aggregates

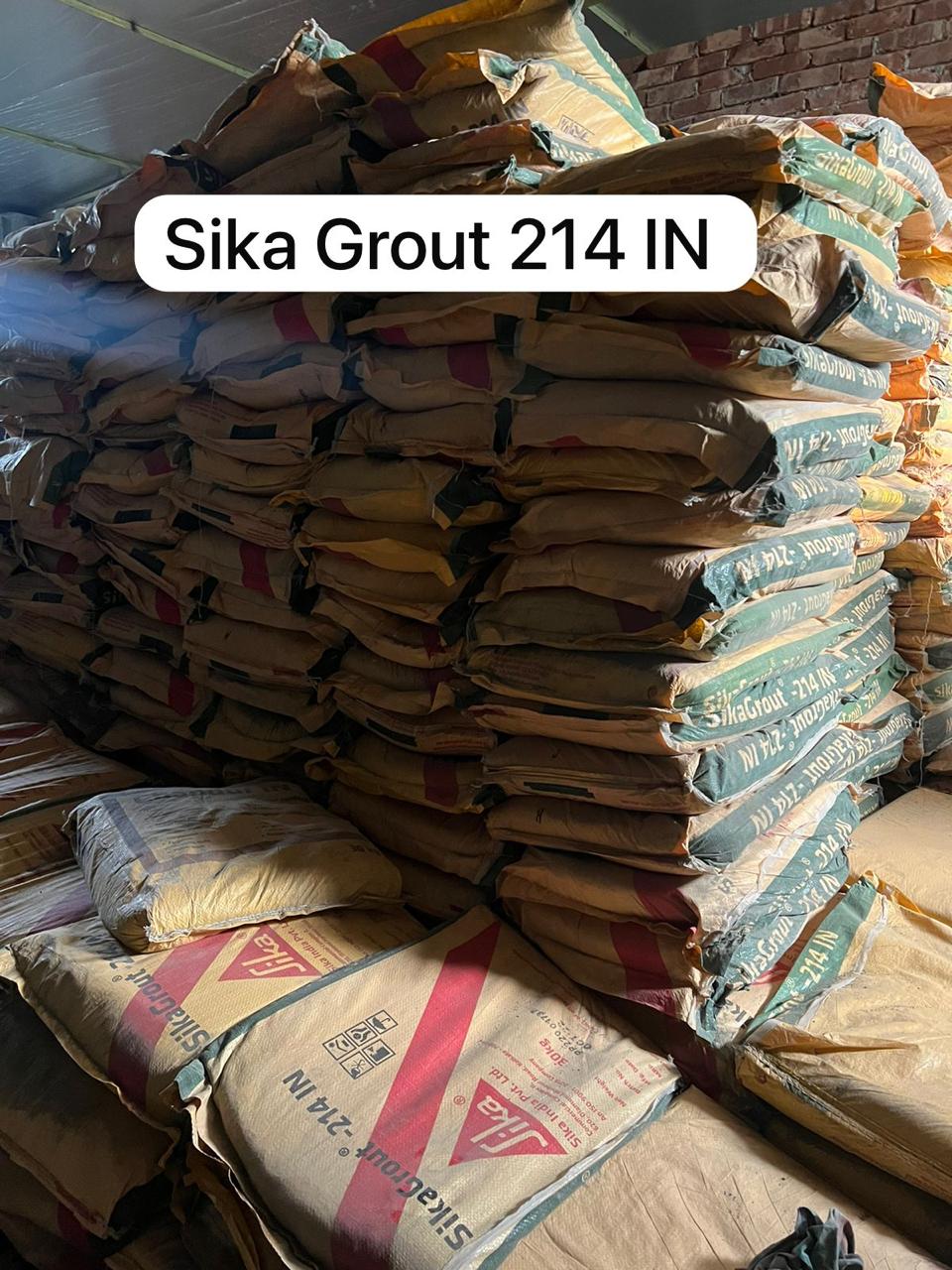

• Sika Grout 214 IN Packaging 30kg bag
• Appearance / Colour Grey Powder
• Shelf life 6 months from date of production.
• Storage conditions Store properly in dry conditions in undamaged and unopened original sealed packaging.
• Bulk density 1.15–1.60 kg/L (dry powder density) at +27 °C  (ASTM C948) Maximum grain size 2.36 mm Product declaration ASTM C1107

BASIS OF PRODUCT DATA

Sika Grout 214 IN All technical data stated in this Product Data Sheet are based on laboratory tests. Actual measured data may vary due to circumstances beyond our control.

FURTHER INFORMATION

SikaGrout®-214 IN for grouting only; do not use SikaGrout®-214 IN for patch repair work etc. Ensure formwork is secure and watertight to prevent movement and leaking during placing and curing. Use chilled water for mixing in case of high ambient temperature. Use hot water for mixing in case of very low ambient temperature. Depending on requirements and site conditions the addition of dry, single size and clean aggregates is possible. Trials are recommended to confirm suitability of aggregates to be used. For large bedding holes and higher gaps duly washed coarse aggregates of size 6mm down may be mixed with SikaGrout®-214 IN in the proportion of grout: aggregate 2:1 (by weight). For additional technical information on SikaGrout® 214 IN or other grouting materials contact the technic al services department.

APPLICATION

Sika Grout 214 IN Pour grout immediately after mixing into the prepared openings. Ensure that air displaced by the grout can easily escape; otherwise entrapped air will prevent full contact grouting. Wet porous substrates to saturated surface dry condition. When grouting base plates etc., ensure that a continu ous and sufficient head of pressure is maintained to keep the grout flowing. To make optimum use of the products expansion properties, apply the grout as quickly as possible (within max. 15 minutes).

ECOLOGY, HEALTH AND SAFETY

For information and advice on the safe handling, storage and disposal of chemical products, users shall refer to the most recent Material Safety Data Sheet
containing physical, ecological, toxicological and other safety-related data.

APPLICATION INSTRUCTIONS
SUBSTRATE QUALITY / PRE-TREATMENT

Concrete, grout, stone: Surfaces must be sound, clean, free from ice, oils, grease, standing water and any loose or friable particles and any other surface contaminants. The concrete “pull off” (tensile) strength should be ≥ 1.0 MPa. Steel, iron: Clean, free from oil or grease, rust and scale etc. The substrate should be prepared by suitable mechanical preparation techniques such as high pressure water jetting, breakers, blast cleaning, scrabbles, etc.The concrete substrates should be pre-soaked with clean water continuously for 2 – 6 hours to ensure a saturated surface dry condition throughout the opera ton.
Immediately before pouring remove all excess or standing water from within any formwork.

MIXING

Mixing Time : 3 minutes minimum Mixing Tools : Mix grout powder mechanically in the correct ratio with water with low speed (max. 500 rpm) electric drill to avoid entraining too much air.
Put around 80 to 90% of required water in the mixing drum, followed by SikaGrout®-214 IN and then add the balance water

PACKAGE SIZE: 30 kg Bag
