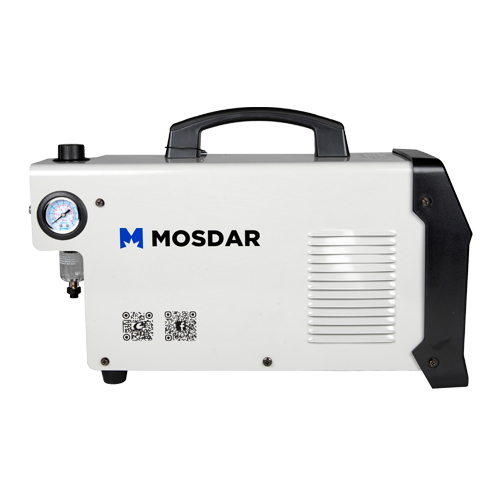

WELDING MACHINE PLASMA CUT 45 MOSDAR

৳ 19,290.00

- Suits 17 series Torches WP17 (SR-17)
- Flexible head
- Complete with ceramic insulator
- Head thread where the collet body screws into is 3/8 ” 32 UNF
- Base thread where the power lead screws into is 3/8 x 24 RH
- Model:WP-17F
- Product Code: P2871

... people are viewing this right now

Guaranteed Safe Checkout

Description

It can cut steel up to 12mm in thickness smoothly.
Advanced digital control mode.
Advanced inverter technology.
Good consistency and stable performance.
Powerful cutting performance.

Accessories

*5m 40A PT31 torch

*200A earth clamp+6mm²X2.5m cable+quick plug

*2 pcs hose clamp

*Helmet

*Brush

*Gloves

Specification

Main Feature
Brand	MOSDAR
Origin	CHINA
Model	CUT 45
Input power source	230V
Rated input power (KVA)	8.5
Rated input current (A/V)	45/98
Duty cycle (%) @40°C	30
No-load voltage (V)	300
Output current range (A)	20~45
Post-flow time (S)	10
Gas pressure range (MPa)	0.3~0.5
Arc ingition type	HF
Protection class	IP21S
Insulation class	H
Cooling mode	Air Cooling
Quality cutting thickness (mm)	12
Max cutting thickness (mm)	20
Power Factory (cosθ)	0.63
Efficiency (%)	84
Net weight (Kg)	6.8
