675GMJ Starrett Dial Comparator Stand with Granite Base Includes 25-181J Indicator

675GMJ

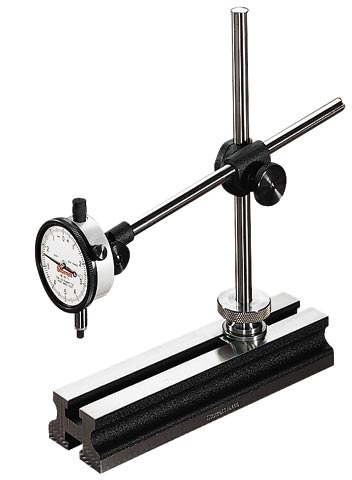

Starrett Dial Comparator with Granite Base

Extremely rugged and universally adjustable to any position, these
gages are well suited for inspection, layout, checking and lineup
operations anywhere in the shop . All settings are individually made
without disturbing others .
These versatile stands allow the indicator to be positioned at any
height within the capacity of the upright base post – 360º both
horizontally and vertically .
The indicator can also be moved lengthwise within the capacity of the
3/4″ x 9-7/8″ (19 x 250mm) horizontal gage-holding rod .
A special feature of this tool is the sensitive, fine-adjustment at the
end of the gage rod . The fine-adjustment range is
approximately 1/4″ (6 .3mm) .
A 1/4″ (6 .3mm) steel indicator contact point
is provided, but contact points in
other lengths and materials are
also available – see previous
accessory pages .
This holder has a Starrett Grade-A
Crystal Pink ® Granite base that is
8″ x 12″ x 2″ (200 x 300 x 50mm),
and is finished to an overall
tolerance of .0001″
(0 .0025mm)
