A.01 TIME DOMAIN REFLECTO METERS CFL510G

The new CFL510G is designed to work on twisted pair copper and coax cable. The 2 ns pulse width virtually eliminates dead zones. Ranges are in six steps from 30 to 15,000 feet.

Key Features: Megger EZ THUMP V2 12 kV HIGHLY PORTABLE FAULT LOCATION SYSTEM

• Compact, light and rugged field instruments
• Battery and AC line operation
• Automatic end-of-cable and fault locating
• 4-kV or 12-kV output versions available
• Transflective colour display
• ARM® Prelocation
• Fault Pinpointing (Thumping)
• Optional Sectionalising Software*

• N/A

TIME DOMAIN REFLECTO METERS CFL510G

Includes:

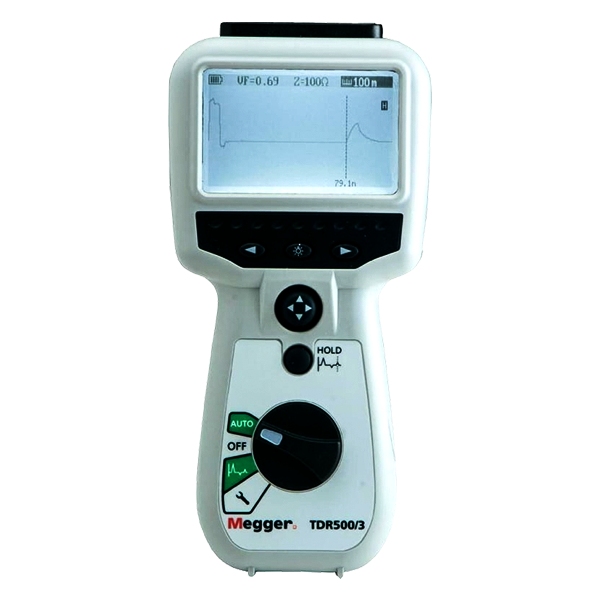

• Handheld TDR
• Dual cursors
• Trace-hold feature
• 2 ns pulse width

• N/A
