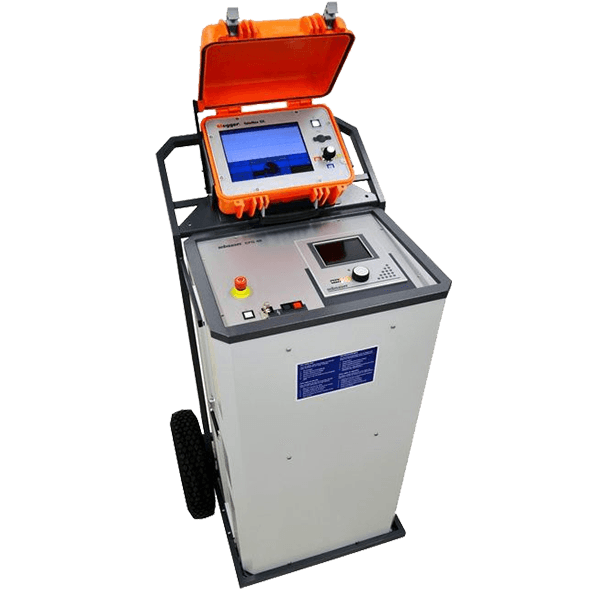

Megger SFX5 SFX8 1000 MEGGER

Megger SFX5 SFX8 are mobile, and economical fault locating systems, especially suited for the fault location in low voltage but also in medium voltage systems, for the lighting system, pilot cables and for deep good pump cables.

With its voltages levels of 8 kV and 5 kV respectively the systems are perfectly suited for the lower voltage applications. The available surge energy of 1000 Joule covers all requirements.

The SFX5-1000 is based on the SPG5-1000 surge generator.

The modular construction, mounted on a trolley permits the use and transport a complete system but also allows the separation and transport in smaller components.

Key Features: Megger TDR2050 TWO CHANNEL CABLE FAULT LOCATOR

• CAT IV 600 V input protection
• IP54 rating offers real life working
• AUTO set up mode for instant, easy use
• AutoFind and FindEnd functions helps find the fault fast
• Trace tagging facility that allows a name to be saved with the trace
• Distance dependent gain to counteract signal attenuation
• Step function to improve detection of near end faults
